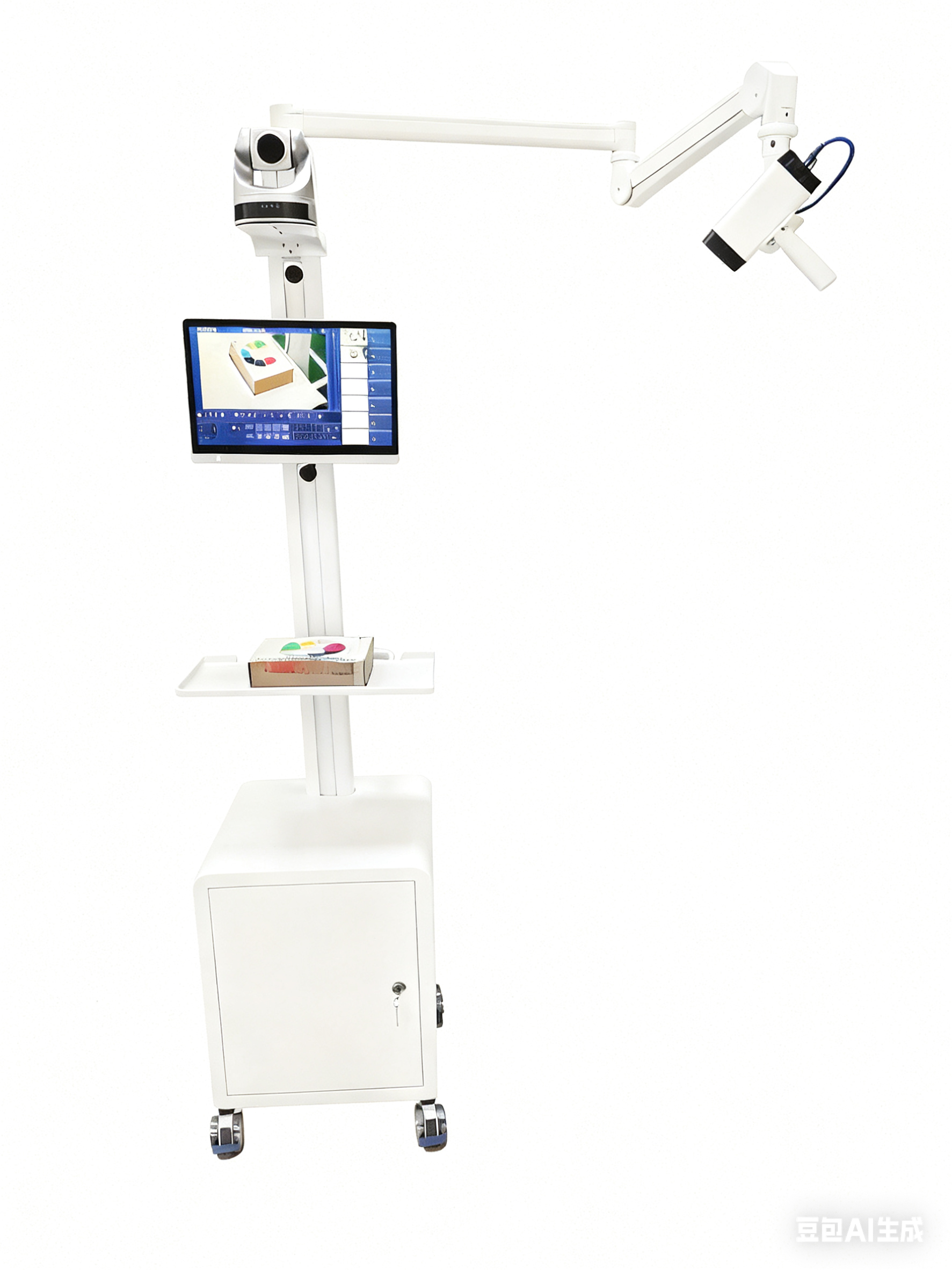

The entire vehicle adopts an integrated design with expandable functional components, which is convenient for installation, use and maintenance.

2. The columns are made of widened and thickened aluminum alloy structure, with T-slots on both the front and back sides, allowing for the installation of other equipment. The surface coating is treated to prevent scratches.

3. A pan-tilt bracket is installed at the top of the column, which can be moved up and down for adjustment.

4. It can be matched with various monitors and adjusted up and down. The fixed frame has a Vesa interface and can swing left and right as well as pitch by 30 degrees.

5. The vehicle body is equipped with a metal rounded corner countertop panel to prevent bumps and can be used to place items such as mice and keyboards. The manual handle is integrated with the countertop, making it convenient to push.

The entire vehicle can meet the requirements of a 15-degree tilt test and an 80kg walking test.

7. The vehicle body's rotating arm can rotate 360 degrees horizontally, and the double sections can be adjusted in multiple directions. Vertical 70-degree adjustment.

8. The movable joint is equipped with a damping device and, in combination with a pneumatic movable arm, supports pulling at any Angle, hovering, and can be easily operated with one hand.

9. It supports the installation of multiple cameras, multiple internal wiring harnesses, and a hidden wiring design throughout the vehicle, making the overall look clean and tidy.

10. The bottom of the vehicle body adopts an integrated design of four wheels and the box body. The accompanying casters are designed as silent wheels and are equipped with a foot brake device.

11. The box body adopts a front door design, which is convenient for placing internal products and debugging.

12. The box is equipped with a double-layer partition design inside, which is detachable and movable.

13. The box body adopts a multi-functional interface design, equipped with a power switch, a battery level display screen, and reserves HDMI/ network /USB expansion interfaces.

Vehicle body parameters

The overall height of the vehicle is 1.8 meters, with a crossarm expansion size of 1.2 meters (0.9 meters is optional), and it can be folded and retracted

Box dimensions: 420 (width) x400 (depth) x480 (height) MM

Keyboard rest size: 450(length)x280 (width) MM

The vehicle body's rotating arm can rotate 360 degrees horizontally and adjust 60 degrees vertically. The rotating arm bracket can be connected to various fixed interfaces of cameras

Power supply system parameters

The box power supply system adopts lithium iron phosphate battery cells, with a maximum battery capacity of 39AH

The power supply system adopts a dual-protection power module, outputting AC 220V (or other DC voltage outputs).

LCD battery level display, precise battery level display

The charge and discharge life of the power supply system reaches 1,000 times

The charging time is 3 to 4 hours
