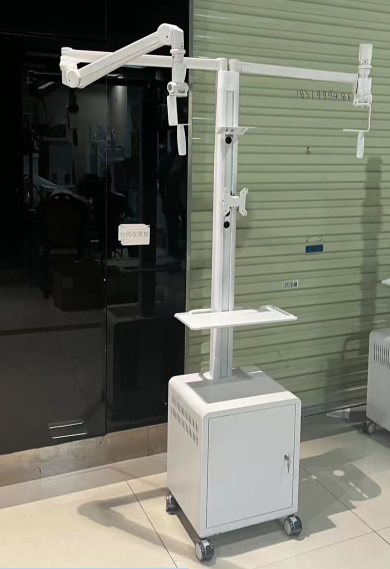

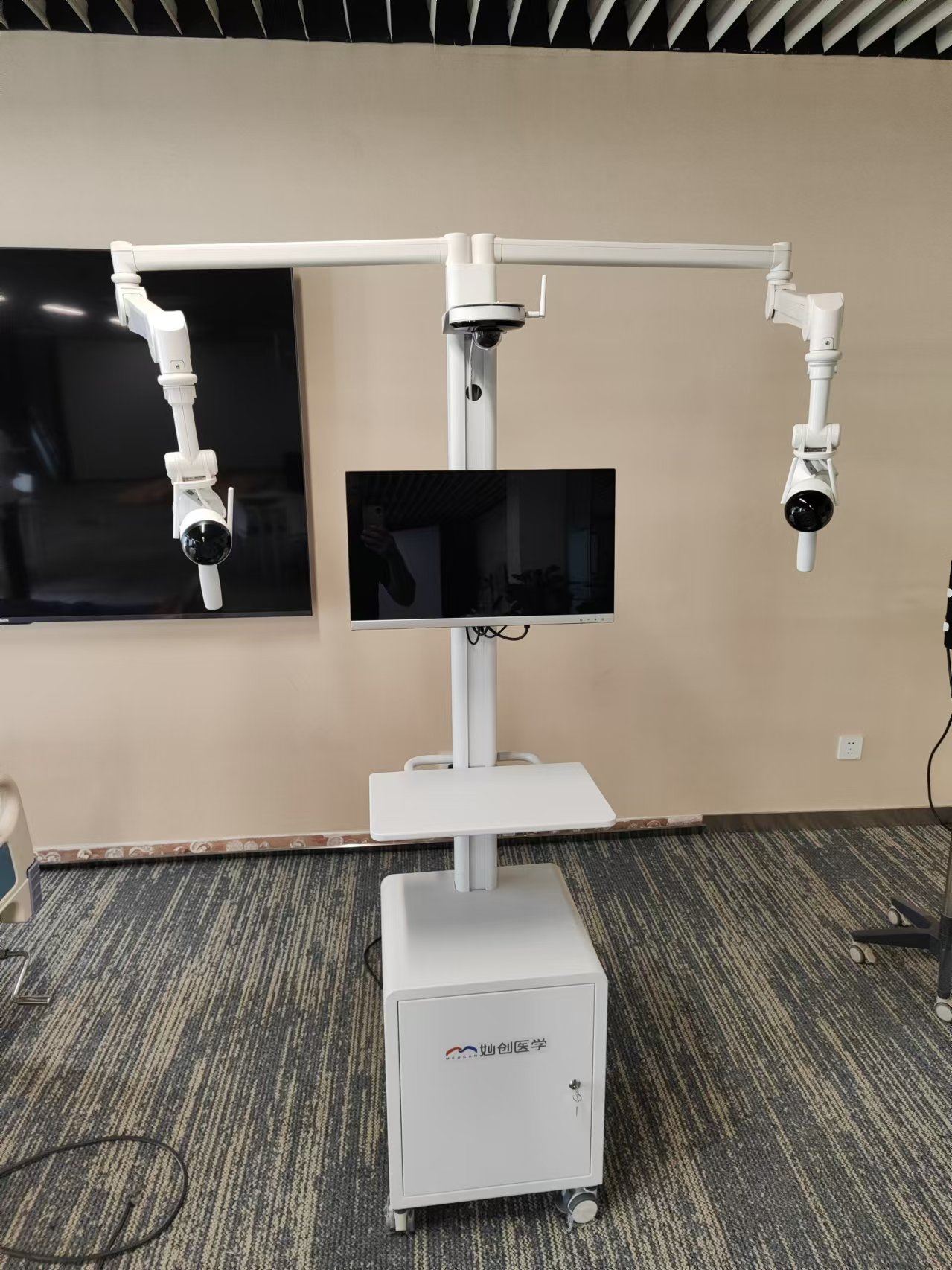

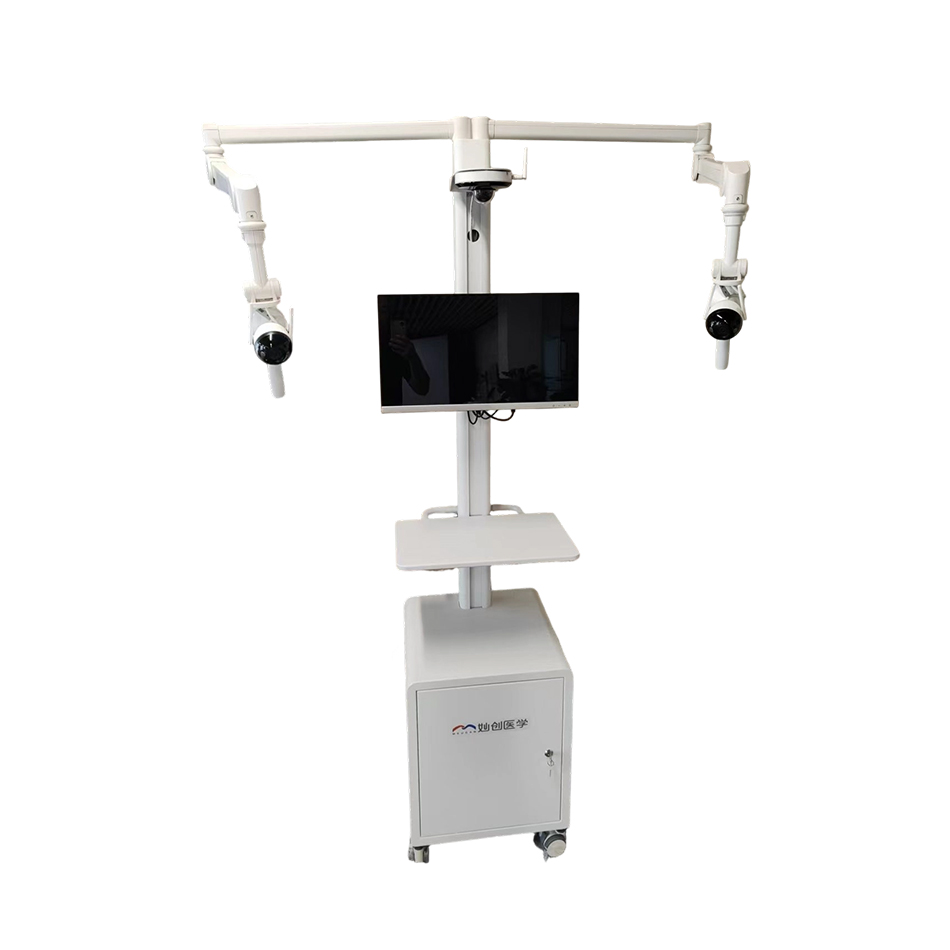

The entire vehicle adopts an integrated and modular design, which is convenient for expanding functional components, installation, use and maintenance.2. The columns are made of aluminum alloy structure, with T-slots on both the front and back sides, allowing for the installation···

The entire vehicle adopts an integrated and modular design, which is convenient for expanding functional components, installation, use and maintenance.

2. The columns are made of aluminum alloy structure, with T-slots on both the front and back sides, allowing for the installation of other equipment. The surface coating is treated to prevent scratches.

3. The bottom of the vehicle body adopts a four-legged integrated design, and the accompanying casters are silent wheels with a foot brake device.

The entire vehicle can meet the requirements of a 15-degree tilt test and a 50kg walking test.

5. The vehicle body is equipped with a countertop panel, which can be used to place items such as mice and keyboards. The manual handle is integrated with the countertop, making it convenient to push with one hand

6. It can be matched with various monitors and adjusted up and down. The fixed frame has a Vesa interface and can swing left and right as well as pitch by 30 degrees.

7. Two double-section universal arms are configured at the top of the column, which is convenient for shooting the operation process of two workstations, saving space and cost.

8. The vehicle body's rotating arm can rotate 360 degrees horizontally and adjust 70 degrees vertically. The rotating arm bracket can be connected to various fixed interfaces of cameras.

9. The movable joint is equipped with a damping device, which, in combination with mechanical spring control, supports pulling at any Angle, hovering, and can be easily operated with one hand.

10. The entire vehicle features a hidden wiring design, making the overall look clean and tidy.

11. The box body adopts a multi-functional interface design, equipped with a power switch, a battery level display screen, and reserves HDMI/ network /USB expansion interfaces.

12. Supports the installation of multiple cameras, supports hidden wire design, and supports internal wiring of multiple wire harnesses

Vehicle body parameters

The overall height of the vehicle is 1.8 meters, and the extended size of the crossarm is 1.2 meters (0.93 meters is optional).

2. The cross arm is foldable, with a retraction size of 0.65/0.55M (0.5/0.43M is optional). Load-bearing capacity: 0.5-2KG or 2-4kg.

3. Box dimensions: 420 (width) x400 (depth) x480 (height) MM

4. Keyboard rest size: 450(length)x280 (width) MM

Power supply system parameters

The box power supply system adopts lithium iron phosphate battery cells, with a maximum battery capacity of 39AH

The power supply system adopts a dual-protection power module, outputting AC 220V (or other DC voltage outputs).

The LCD battery level display screen can be switched between different display modes

The charge and discharge life of the power supply system can reach 1,000 times, and the charging time is 4 to 5 hours
