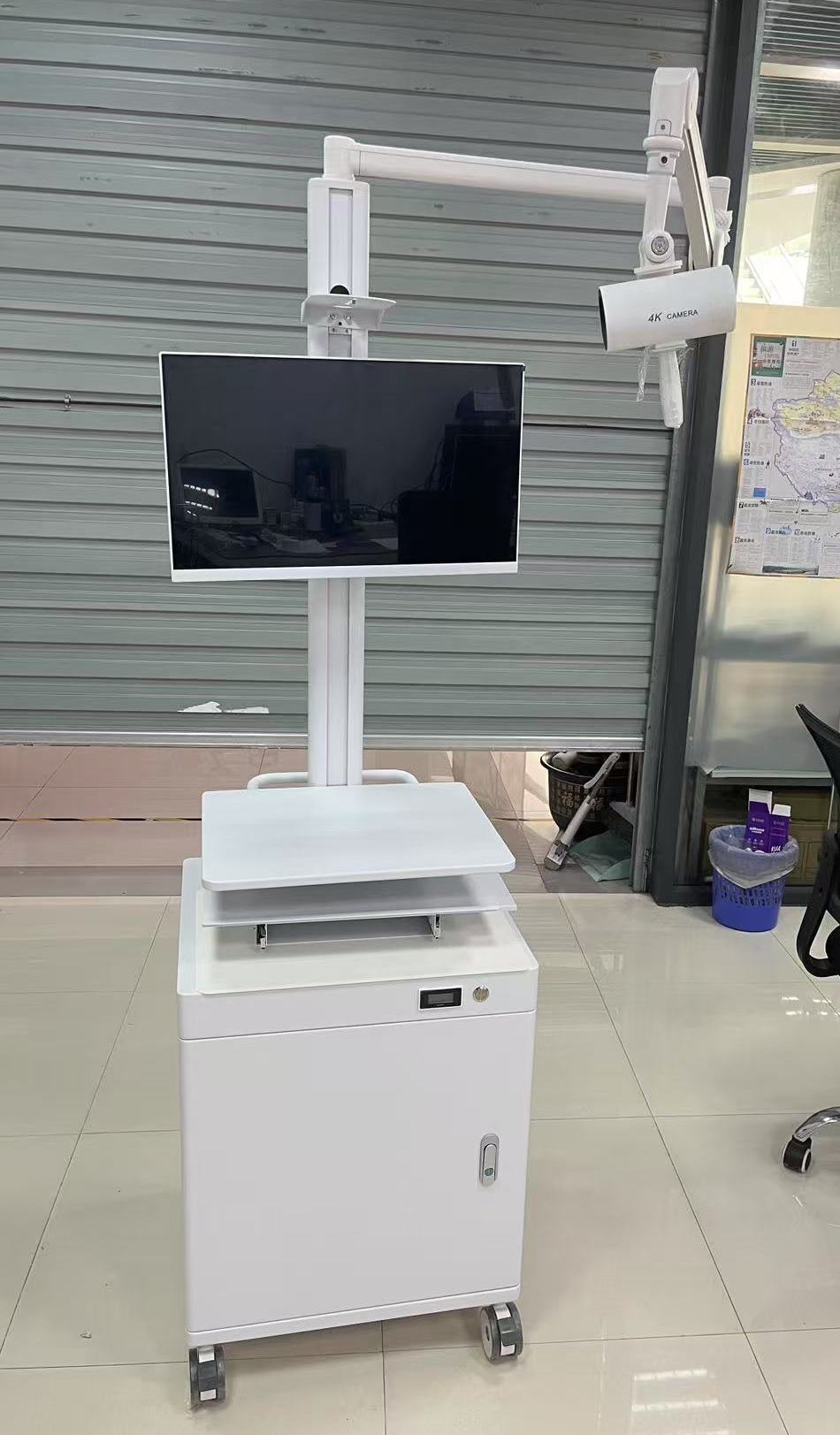

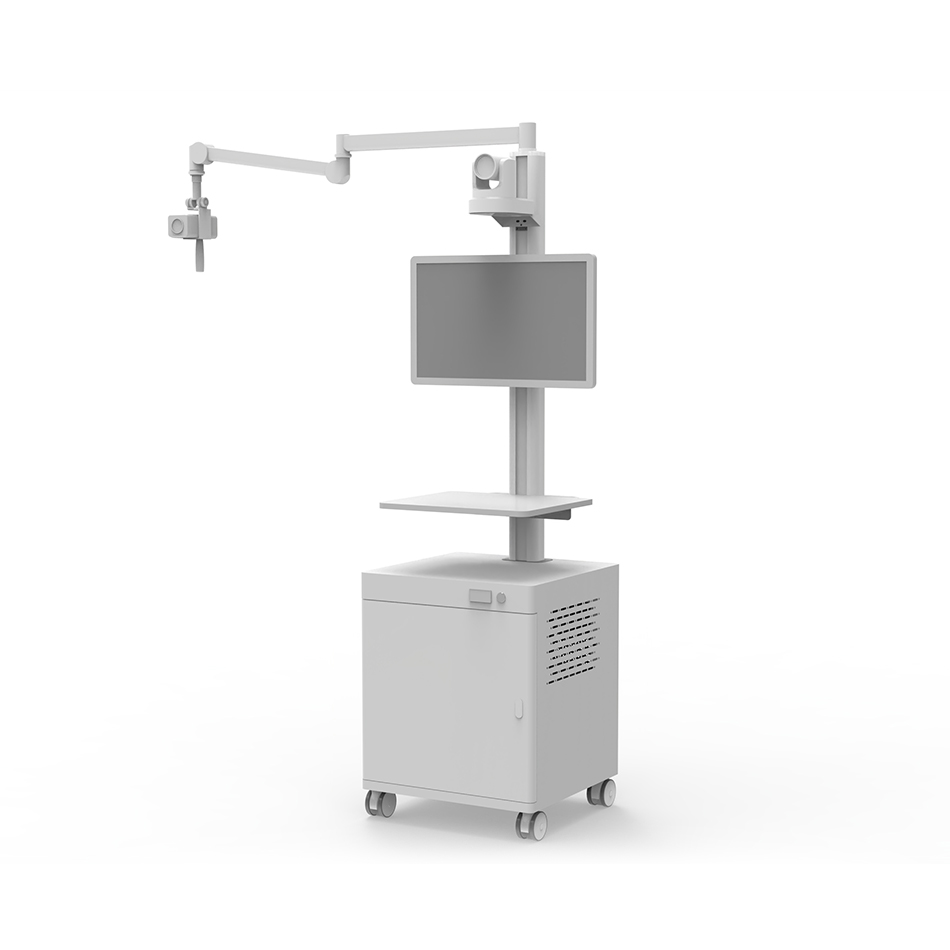

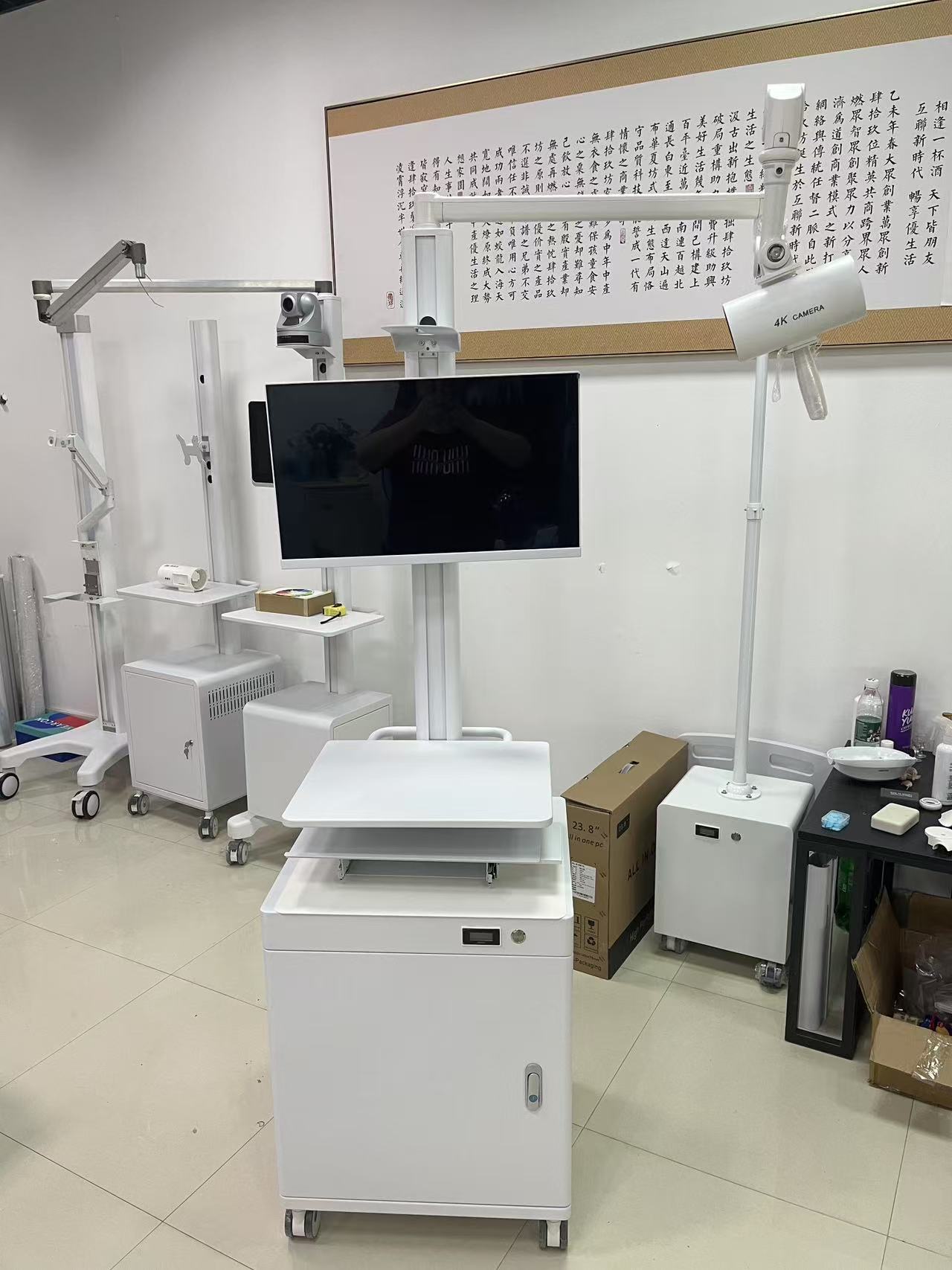

1. The entire vehicle adopts an integrated design, with expandable functional components, facilitating installation, use and maintenance.

2. The columns are made of widened and thickened aluminum alloy structure, with T-slots on both the front and back sides, allowing for the installation of other equipment. The surface coating is treated to prevent scratches.

3. A pan-tilt bracket is installed at the top of the column, which can be moved up and down for adjustment.

4. It can be matched with various monitors and adjusted up and down. The fixed frame has a Vesa interface and can swing left and right as well as pitch by 30 degrees.

5. The vehicle body is equipped with a metal countertop panel with a curved edge design, which can accommodate items such as mice and keyboards. The manual trolley handle is integrated with the countertop.

The entire vehicle can meet the requirements of a 15-degree tilt test and an 80kg walking test.

7. The vehicle body's rotating arm can rotate 360 degrees horizontally, and the double sections can be adjusted in multiple directions. Vertical 70-degree adjustment.

8. The movable joint is equipped with a damping device and, in combination with a mechanical movable arm, supports pulling at any Angle, hovering, and can be easily operated with one hand.

9. It supports the installation of multiple cameras, multiple internal wiring harnesses, and a hidden wiring design throughout the vehicle, making the overall look clean and tidy.

10. The bottom of the vehicle body adopts an integrated design of four wheels and the box body. The accompanying casters are designed as silent wheels and are equipped with a foot brake device.

11. The box body adopts a front door design, which is convenient for placing internal products and debugging. It can hold standard cabinet equipment, with a maximum capacity of 20U.

12. The box is equipped with a double-layer partition design inside, which is detachable and movable.

13. The box body adopts a multi-functional interface design. The front panel is equipped with a main power switch and a battery level display screen. The rear door panel reserves HDMI/ network /USB expansion interfaces.

Vehicle body parameters

The overall height of the vehicle is 1.8 meters, the extended size of the crossarm is 1.2 meters, and it can be folded and retracted. Load-bearing range: 0.5-2KG /2-4KG

Box dimensions: 520 (width) x500 (depth) x580 (height) MM

Countertop dimensions: 450(length)x380 (width) x15(thickness)MM

The vehicle body's rotating arm can rotate 360 degrees horizontally and adjust 60 degrees vertically. The rotating arm bracket can be connected to various fixed interfaces of cameras

Power supply system parameters

The power supply system adopts lithium iron phosphate cells, with a maximum battery capacity of 39AH.

The power supply system adopts a dual-protection power module with a charge and discharge life of up to 1000 times.

It adopts a sine wave inverter to output AC220V (500W) or other DC voltage outputs.

LCD battery level display, precise battery level display.

Supports fast charging, with a charging time of 3 to 4 hours.
